The speakers currently on the market do not have a good waterproof effect. On rainy days, rainwater can easily enter the speaker through the installation gaps, affecting the use of the speaker, or even causing damage to the speaker or short circuiting the circuit due to water exposure, resulting in a fire.

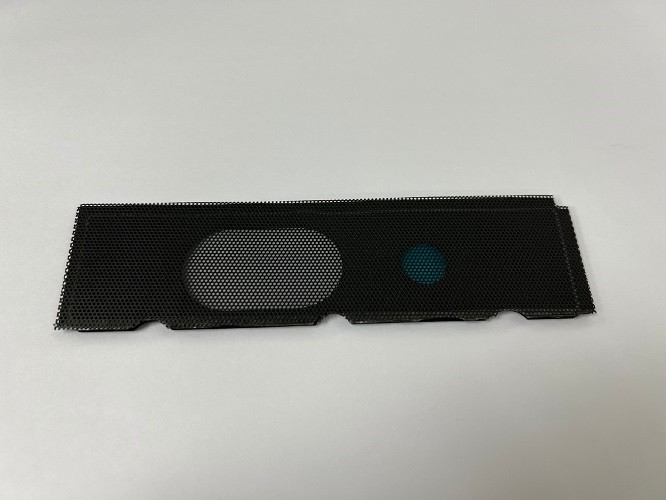

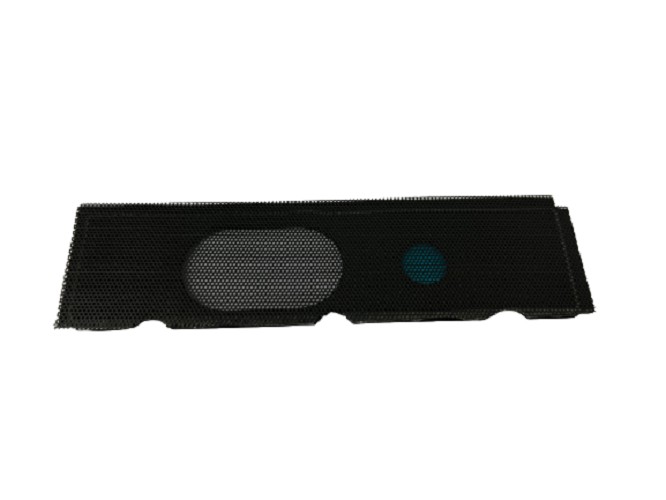

PC sound nets allow sound and air to pass through, but water cannot pass through waterproof sound-permeable membranes and air pressure balancing membranes. They are often used in acoustic devices to provide a waterproof, dustproof and anti-pollution barrier without significantly affecting the sound quality. In addition to being able to prevent ordinary water, they can also prevent ordinary beverages such as soda and coffee, and can withstand high water pressure. Waterproof sound-permeable membranes are mostly used above the diaphragm of speakers, but they also need to be installed according to the waterproof design requirements of the speakers.
The waterproof sound-transmitting membrane is generally made of ePTFE microporous film through die-cutting. It is a speaker waterproof sound-transmitting membrane diaphragm made of ePTFE material supplemented by waterproof back glue and PET material through multiple processes. Most of them are used in various electronic products such as smart phones. On the speakers, speakers and other sound-producing components of mobile phones, rugged mobile phones, walkie-talkies, Bluetooth headsets, Bluetooth speakers, tablets and other products, the waterproof sound transmission and pressure relief film of the speaker speaker can be installed at the sound hole to play the role of waterproof sound transmission. In addition, it can also achieve A certain degree of breathability and pressure relief capabilities. The realization of these functions is achieved by the properties of the ePTFE material used in the waterproof sound ventilation and pressure relief membrane of the speaker. The ePTFE material has good waterproof, breathable and sound permeability properties, so it can be installed to prevent the installation of the speaker. The breathable and pressure-relief requirements of water-proof sound-passing membrane products require that the PTFE waterproof sound- passing membrane be used in sound transmission to minimize the sound transmission loss; when the PTFE waterproof and breathable film is used in a sealed shell, it can release high-pressure gas to balance the pressure inside and outside the shell, making the inner wall of the shell less susceptible to damage. Waterproof sound-permeable membrane, and waterproof sound-permeable components having the same, electronic equipment, electronic equipment casings and waterproof sound-permeable structures
The present invention relates to a waterproof sound-permeable membrane having both waterproofness and sound permeability, a waterproof sound-permeable member equipped with the waterproof sound-permeable membrane, an electronic device, a housing for an electronic device, and a waterproof sound-permeable structure.
Electronic devices such as mobile phones, tablets, digital cameras, and game consoles usually have audio functions. A sound-producing part such as a speaker and/or a sound-receiving part such as a microphone are housed in a housing of an electronic device having an audio function. An opening is usually provided in the frame of the electronic device at a position corresponding to the audio part, through which sound is transmitted between the outside of the electronic device and the audio part.
'Waterproof and dustproof speaker mesh, waterproof sound-permeable membrane, waterproof sound-permeable membrane , waterproof sound-output cloth, waterproof sound-output net
The unique advantages of waterproof and dustproof speaker net:
1. Use sound-transparent materials to minimize sound loss during sound transmission.
2. Provide a strong waterproof and dustproof barrier for indoor and outdoor sound equipment
3. Quickly restore breathability after contact with liquids
4. The extremely sticky adhesive can be used in harsh environments and can adhere firmly to the surface of various products.
5. Available in both standard sizes and customized products
7. Thin and lightweight, it is an ideal ventilation solution for equipment placed in limited spaces.
8. Easy to install and can be installed manually or automatically
9. When the equipment comes into contact with dust, is splashed with liquid, or is immersed in liquid, it can provide effective protection for the equipment, and the protection level can reach IP68.
Sales method: manufacturing, cooperation, export
Export trade terms: CFR freight-included delivery terms, EXW factory delivery terms, FOB departure port delivery on board terms
Sales target markets: Taiwan, Mainland China, Hong Kong, Singapore, the United States, Asia, North America
Inquiry Payment methods: TT wire transfer, Check Check
Competition Features
Excellent quality: INOAC PC sound net made of EPDM foam
Fast delivery: production capacity is based on customer needs, estimated delivery time is 14 hours
Environmentally friendly products: PC sound net made of EPDM foam has obtained ROHS certification
PC sound net accepts original factory entrustment design and manufacturing ODM
PC sound net accepts original factory entrustment manufacturing OEM
